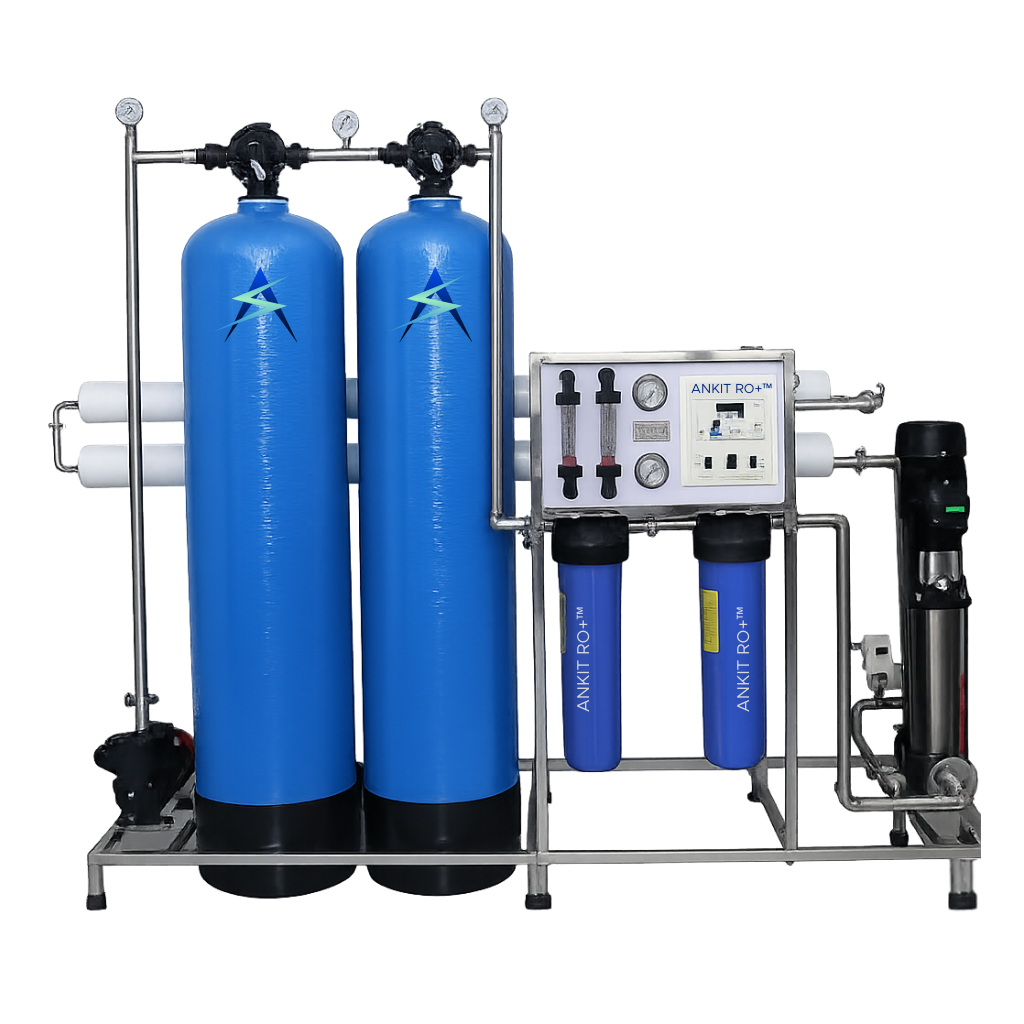

500 LPH RO PLANT

The Ankit RO+™ 500 LPH RO Plant, manufactured by Ankit Sizing Pvt. Ltd., Ahmedabad, is a high-capacity industrial reverse osmosis system engineered for continuous and reliable water purification in factories, manufacturing units, hotels, hospitals, institutions, and commercial facilities.

Designed for heavy-duty operation, this system effectively removes dissolved salts, hardness, heavy metals, chemicals, and other impurities from borewell, tanker, and municipal water sources, delivering consistent purified water suitable for industrial and commercial applications.

Suitable for continuous industrial and commercial water purification
Efficient removal of TDS, dissolved salts, and harmful contaminants
Designed for borewell, tanker, and municipal water supply
Stable performance under varying pressure and voltage conditions
Heavy-duty construction for long-term durability
Energy-efficient operation with easy maintenance access
Manufactured and supported by Ankit Sizing Pvt. Ltd.

Inquire Now

Technical Specifications – Ankit RO+™ 500 LPH RO Plant

Raw Water Pump	1 HP – Lubi (36-A)
Pressure Gauge	7 KG – Stainless Steel
A.R.V	1" – PP
Vessel	13 x 54 – FRP (2 Qty)
Filter Valve	MPV 25 NB – Regular (2 Qty)
Sand Media	Regular Sand Bag (4 Qty)
Activated Carbon	25 KG – Regular
Jumbo Filter Housing	20" Virgin Material (2 Qty)
Spun Filter	20" Jumbo – 4" Dia (2 Qty)
Low Pressure Switch	KP-35
High Pressure Pump	2-15 Shimge / Lubi
RO Pressure Tube	40 x 80 – Matrix / UKL
Dosing Pump	Proaqua
Control Panel	1x1 Panel with TDS Display – G.E.
Pressure Gauge	21 KG – Stainless Steel (2 Qty)
Rotameter	600 LPH + 1200 LPH – Acrylic (2 Qty)
SS Skid	Regular 30mm x 30mm – SS 202 Matt
Piping & Wiring	UPVC Piping with Cable Tray – Astral / Ashirvad
RO Membrane	40 x 40 Membrane (2 Qty)
Dosing System	Dosing Drum with Chemical
Float Level Switch	Included
Solenoid Valve	SV Type
